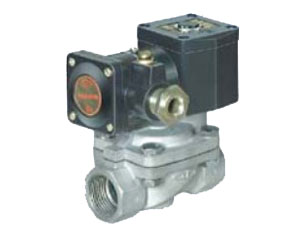

| C Series Explosion proof Solenoid Valve | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applications The valve, which is inspected to be qualified by the National Instrument Explosion proof Safety Testing Bureau, it is in accordance with the standard of GB3836.1-2 and obtains the corresponding explosion proof certificate. The valves are a kind of automatic control device used in various industrial processes in explosion environment. Features 1. The junction box of explosion proof has cable protect tube. 2. Installed in any direction. 3. Compact construction. 4. Little volume 5. With optional signal device of valve position. Construction CA-E Series direct acting type Installed explosion-proof device on the CA series. CC-E Series pilot operated piston type Installed explosion-proof device on the CC series. CF-E Series pilot operated diaphragm type Installed explosion-proof device on the CF series. CE-E Series kick direct acting diaphragm type Installed explosion-proof device on the CE series.
Explosion-proof marking ExdI/ⅡBT3 ExdI/ⅡBT4 Medium Temp. (℃) ≤180 ≤60 Max.Temp. of the solenoid shell (℃) ≤200 ≤135 Power voltage (V) AC220 DC24
Technical specification
Item Parameter Orifice size (mm) 2～200 Power voltage (V) AC220 DC24 Other voltages are available on request. Medium See general technical data Operating differential pressure (MPa) See general technical data Leakage (ml/min.) See general technical data

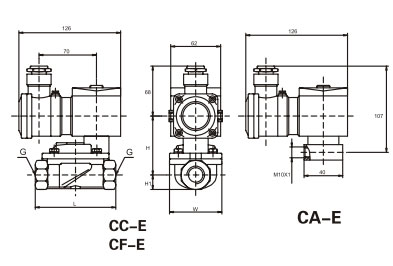

CC-E、CF-E Outline dimension Port size L W H1 H G1/2 80 50 15 86 G3/4 90 56 21 105 G1 100 70 22 113.5 G11/4 125 113 27 143 G11/2 140 122 30 150 G2 160 125 37 169 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
