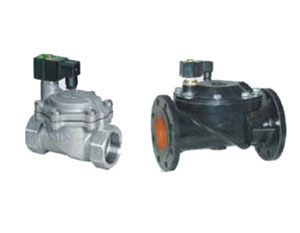

| CF Series Pilot operated Diaphragm Solenoid Valve |
| |
|
Features
1.Higher 10% flow rate than common solenoid valve.
2.Compact design.
Special Order
CF-M：Multi-function Solenoid valve
Multi-function: Pilot valve and main valve can be isolated. Additional manual-operation. Adjustable response time.
The suitable range of media viscidity is adjustable. Can output Signal of valve core
position based on customer’s demand.
Handy maintain: Examine and repair in line isolating pilot valve when it is failure.
Saving three times more of manual valves and bypass.
CF-X：Signal solenoid valve with valve position.
CF2：Normally open solenoid valve.
|
 |
|
Technical specification
|
Item
|
Parameter
|
|
Medium
|
Air, coal gas, light oil, oil (≤50cSt)
|
|
Medium Temp. (℃)
|
-10～60 0～150
|
|
Ambient Temp. (℃)
|
-20～60
|
|
Max. operating pressure(MPa)
|
0.8
|
|
Min. operating pressure(MPa)
|
0.02
|
|
Leakage (ml/min.)
|
0
|
|
Power voltage (V)
|
AC220 DC24V Other voltages are available on request.
|
|
Power consumption (W)
|
AC6.7 DC11
|
|
|
Outline dimension
|
DN
|
Kv
|
CF1F
|
CF1S
|
H
|
|
D
|
D1
|
n-d
|
L
|
G
|
L
|
W
|
H1
|
|
15
|
3.0
|
/
|
/
|
/
|
/
|
G1/2
|
100
|
65
|
20
|
109
|
|
20
|
5.4
|
105
|
75
|
4 -φ14
|
130
|
G3/4
|
100
|
65
|
20
|
121
|
|
25
|
9
|
115
|
85
|
4 -φ14
|
160
|
G1
|
105
|
72
|
24
|
130
|
|
32
|
14
|
135
|
100
|
4 -φ18
|
210
|
G11/4
|
125
|
113
|
27
|
154
|
|
40
|
20
|
145
|
110
|
4 -φ18
|
210
|
G11/2
|
140
|
122
|
30
|
160
|
|
50
|
30
|
160
|
125
|
4 -φ18
|
230
|
G2
|
160
|
125
|
37
|
170
|
|
65
|
45
|
180
|
145
|
4 -φ18
|
290
|
/
|
205
|
|
80
|
70
|
195
|
160
|
8 -φ18
|
310
|
210
|
|
100
|
110
|
220
|
180
|
8 -φ18
|
350
|
230
|
|
|
| |
|
